THE SLIM CREEPER – 1/10th Chassis by Boomslang
Super Narrow 55mm chassis. This allows outboard links so the skid is uninterrupted and eliminates the awful extra-long set screws that don’t clamp the ball ends.
Chassis Rails – Order/Cut 2.5mm or 3mm Carbon recommended
CNC Madness is my go-to for all things carbon. Based in Canada, quote within 24 hrs. Fast, accurate and very economical. Cncmadness.com
Printable Files
Skids
- Dlux OD4 - Right
- Dlux OD4 - Left
- Blank – drill for the transmission of your choice. Dlux Portal is recommended transmission along with smaller 380 Stumpy motors for best fit. Wider transmissions and 540 motors may not fit between the rails
Bearing Carrier Housings:
- Side Mount (long shaft) – Dlux shaft (see photo – must be cut)
- Side Mount (short) – Branbilt shaft
- Center Mount (short) – Branbilt shaft
Other
- Mini Sliders
MID-BEARING CARRIERS Harware

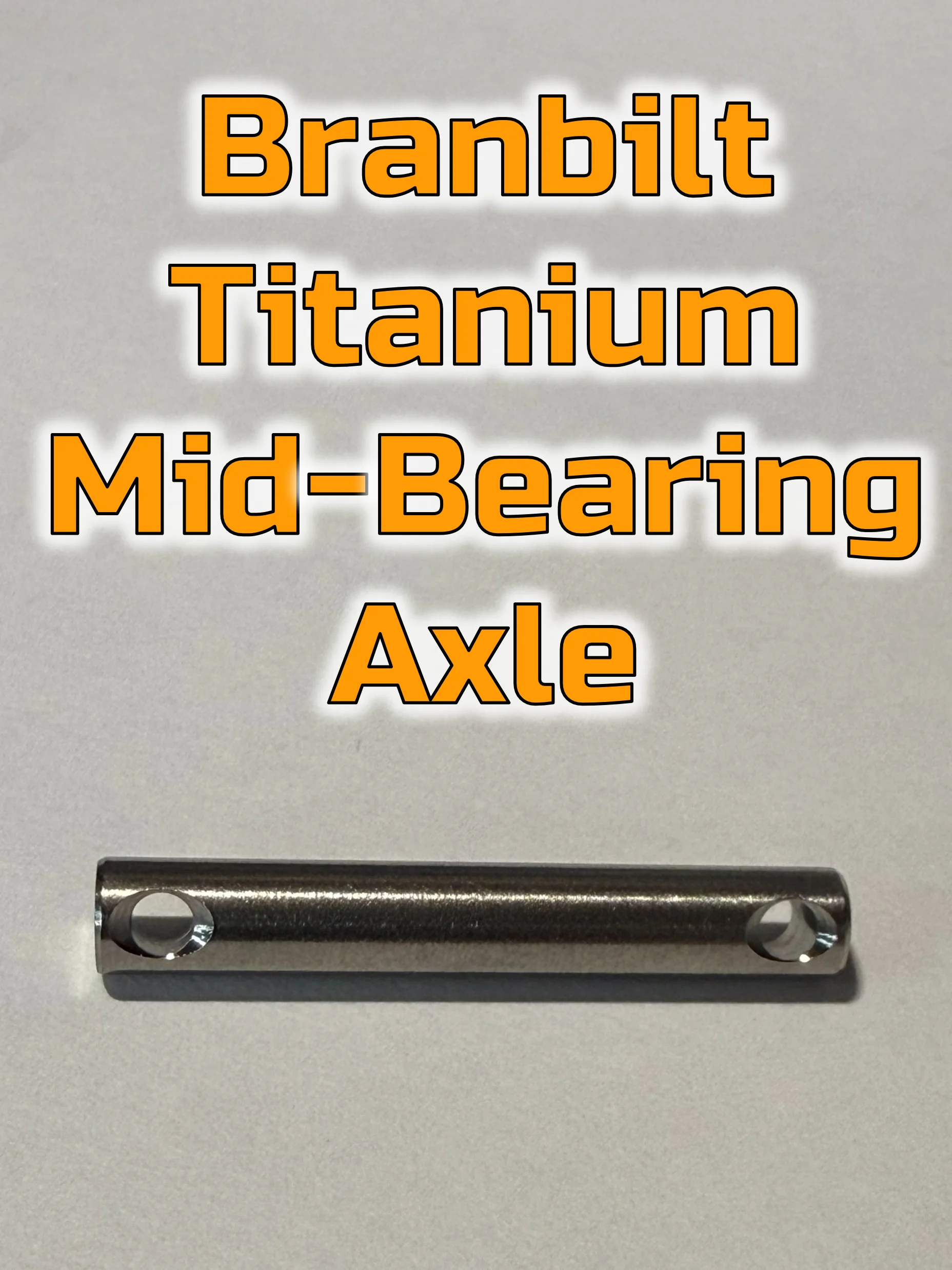

1. Branbuilt Titanium Axle – Available Here
https://theboomslang.com/products/slim-creeper-chassis-build-parts

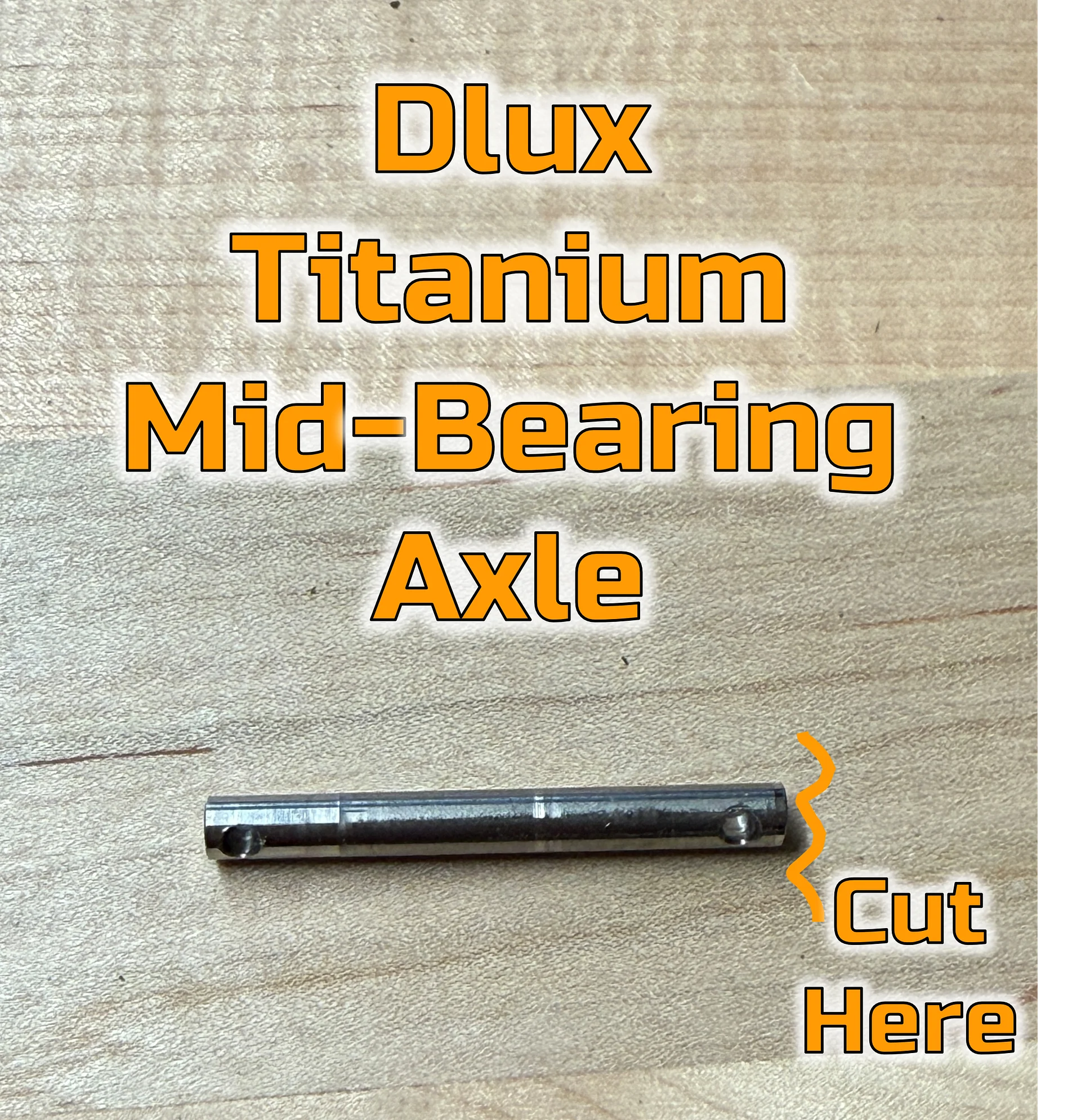

2. Dlux Titanium Axle from the Ham/Cheez Transmission [Longer for more clearance and shaft stability. You may have to sand down the middle section (just a sliver, sandpaper and a drill) to slide the axle through the bearings. You will definitely have to cut it shorter. Use a Dremel and fiber cutoff wheel.]
https://dluxfab.com/products/HamBerger-or-CheezBerger-Transmission-Parts-p128343383
Bearings - ne on each end of the shaft:
5x11x4mm
5x10x4mm
LINKS
Lengths for 13.5” Wheelbase. Lenths are approximate.
Front Upper - XX mm
Front Lower - XX mm
Rear Upper(super short design, works terrifically) - XX mm
Rear Lower - XX mm
AMAZON IDEA LIST for Complete List of Potential Parts:
OTHER HARDWARE
55mm Carbon Tube (cut for killer chassis spacer bridges)
55mm Spacers
Roof Mount Wing Buttons
Vitivon Capra Carbon Body Panels
